DeutschHeat seal machines

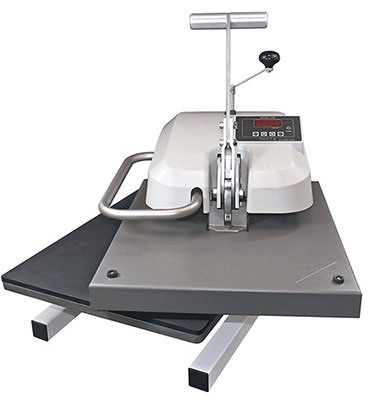

PI 256
The PI 256 is a manually operated press with a flexible head that fully swings to the right, allowing easy access to the plate. Being a manually operated machine and therefore more difficult to operate than a pneumatic press, the PI 256 is particularly suitable for sealing smaller quantities.
This press has an integrated digital controller for time, temperature and cycle counter. The pressure can be adjusted on a scale of 0-10. The standard bottom platen is very easy to replace with smaller platens.
Technical data PI 256
| Use | Most suitable for medium sized labels in smaller quantities |
| Model | Tabletop |
| Operation | Manually and very easy |
| Time | Variably adjustable |
| Temperature | Variably adjustable |
| Voltage | 220V, 50Hz | 110V, 60Hz |
| Size platen | 38x51 cm. Extra sizes: 15x15 cm and 25x38 cm |

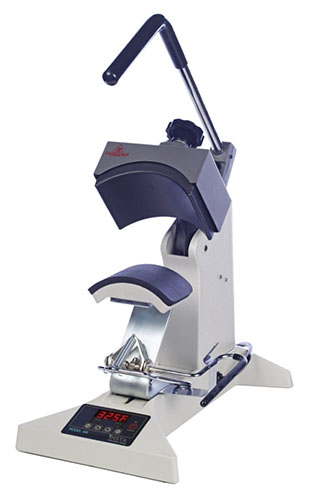

PI 418 Baseball Cap pers
This machine was developed especially for sealing transfers on baseball caps.
The PI Baseball Cap 418 is a simple hand-operated table-top model with adjustable time and temperature.
Technical data PI Baseball Cap 418
| Use | Specially developed for sealing die cut transfers on baseball caps |
| Model | Tabletop |
| Operation | Manually and very simple |
| Time | Variably adjustable |
| Temperature | Variably adjustable |
| Voltage | 220V, 50Hz | 110V, 60Hz |
| Size platen | 11 x 17 cm |

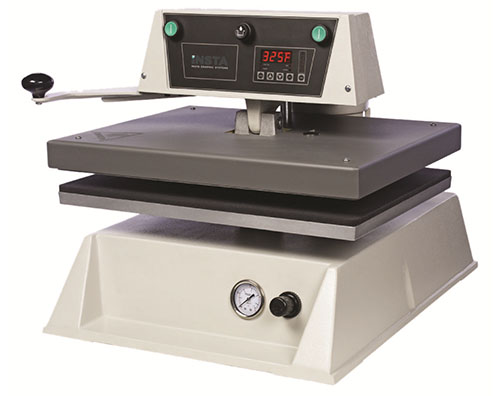

PI 718
The PI 718 is one of our most popular models and suitable for sealing pocket-, breast- and back transfers. The press is pneumatically operated and has a flexible head with the possibility to rotate completely to the right.
It has a big bottom platen, which is extremely simple to replace. This press has an integrated digital controller with 5 programmable time and temperature settings
Technical data PI 718
| Use | Very suitable for sealing pocket-, breast- and back transfers |
| Model | Tabletop |
| Operation | Pneumatically operated |
| Time | Variable adjustable |
| Temperature | Variable adjustable |
| Voltage | 220V, 50Hz | 110V, 60Hz |
| Platen | 38x38 cm. Extra sizes: 38x15 cm and 15x15 cm |
| Details | Air compressor necessary |

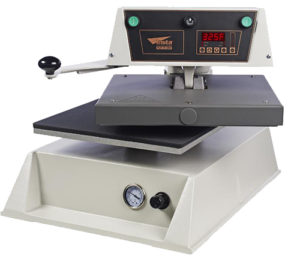

PI 728
The PI 728 is most suitable for sealing large(r)back transfers. The press is pneumatically operated and has a flexible head with the possibility to rotate completely to the right.
It has a extra big bottom platen, which is extremely simple to replace. This press has an integrated digital controller with 5 programmable time and temperature settings.
Technical data PI 728
| Use | Very suitable for large(r) back labels |
| Model | Tabletop |
| Operation | Pneumatically |
| Time | Variably adjustable |
| Temperature | Variably adjustable |
| Voltage | 220V, 50Hz | 110V, 60Hz |
| Size platen | 38 x 50 cm |
| Details | Air compressor necessary |

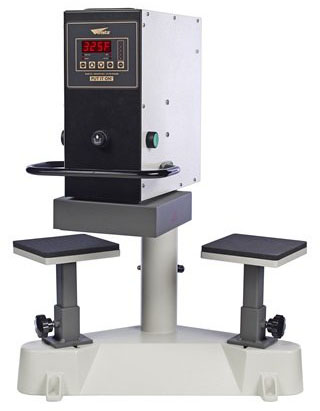

PI 907 Twin Heads
The PI 907 Twin Heads is a pneumatically operated press with flexible pressure head and dual workstation. The flexible head provides higher productivity and can be rotated completely to the left and to the right.
The press has an integrated digital controller with 5 programmable time and temperature settings.
Technical data PI 907
| Use | Suitable for smaller die cut labels |
| Model | Tabletop |
| Operation | Pneumatically |
| Time | Variably adjustable |
| Temperature | Variably adjustable |
| Voltage | 220V, 50Hz | 110V, 60Hz |
| Size platen | 15 x 15 cm |
| Details | High productivity, need for air compressor |

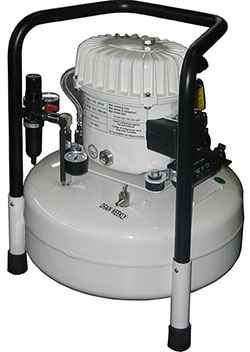

PI OL32-24 Compressor
Together with the most of our Heatseal Machines you need an air compressor, which we have in our collection as well.
Technical data PI OL32-24 Compressor
| Use | To be used with the PI 718 and other heatseal presses |
| Size | 380x380x550 mm | 15x15x21 5/8 inch |
| Motor | 0.5HP | 0.35kW |
| Tank | 24 liter | 6.34 gallon |
| Voltage | 220V, 50Hz | 110V, 60Hz |
| Details | Oil lubricated, with thermal protection and ultra-silent |
